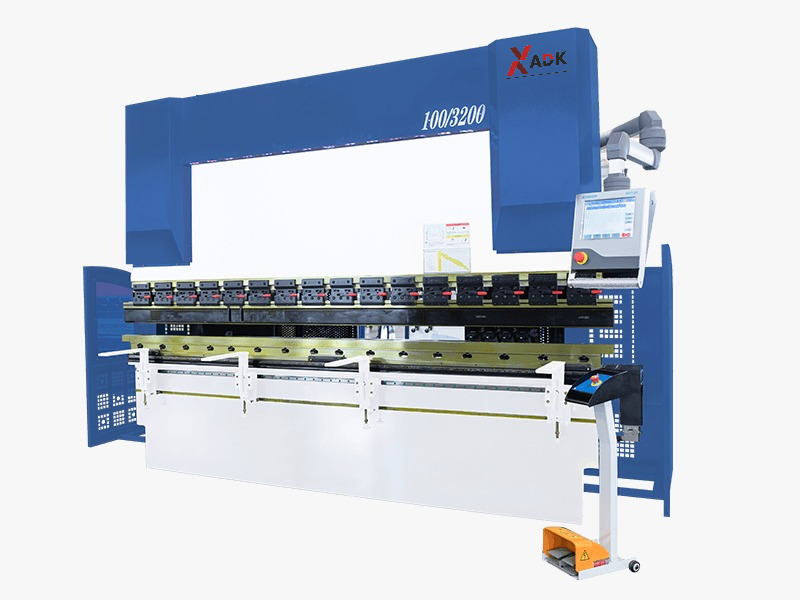

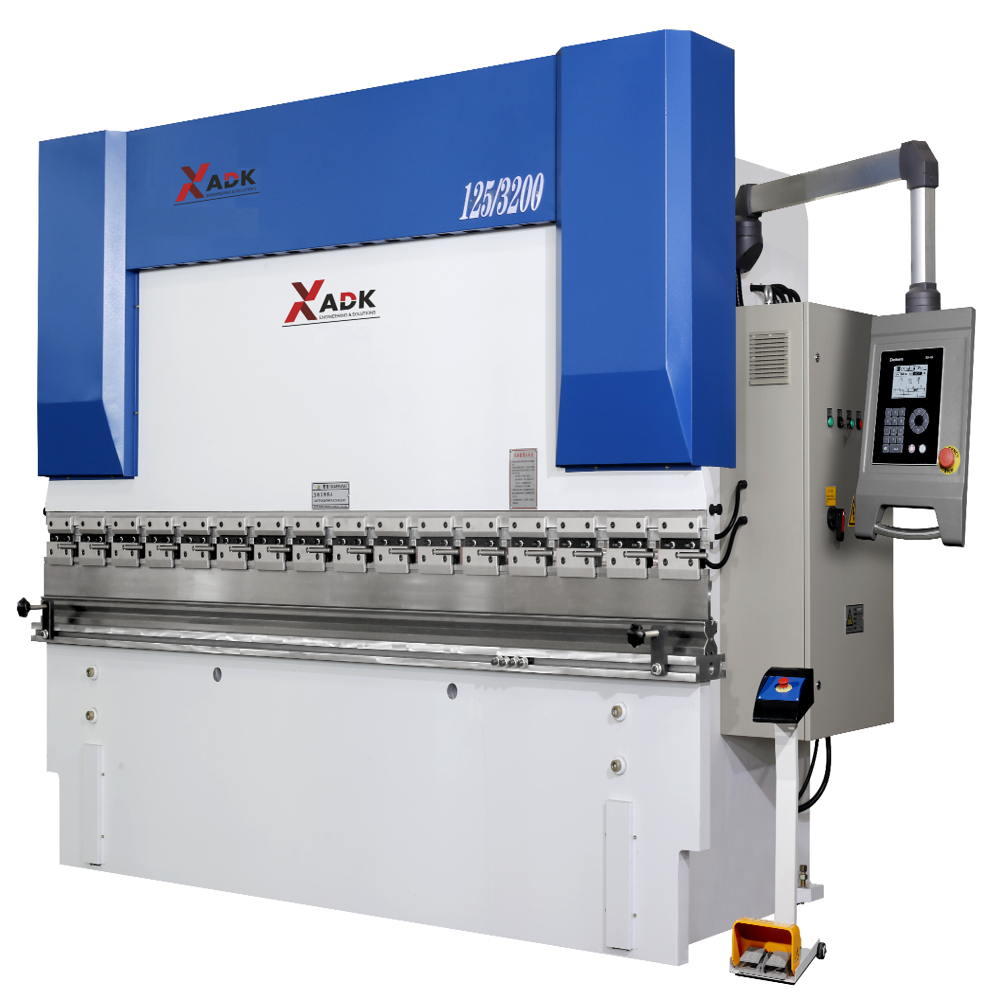

NC Press Brake Machine

Name: NC Press Brake Machine
Brand: ADK ENGINEERING & SOLUTIONS
Price: 2500000.0 INR
Availability: InStock

Price 2500000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

NC Press Brake Machine Specification

Product Type
NC Press Brake Machine

General Use
Industrial

Material
Stainless Steel

Automatic
Yes

Power Source
Electric

Rigidity
High

Voltage
230 Volt (v)

Warranty
1 Year

NC Press Brake Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
15 Units Per Month

Delivery Time
2 Months

Main Domestic Market
All India

About NC Press Brake Machine

The entire frame of the press brake is constructed using integrated welding and undergoes tempering to eliminate internal stresses. The frame is then treated with shot blasting to remove rust, followed by an anti-rust coating for enhanced durability.

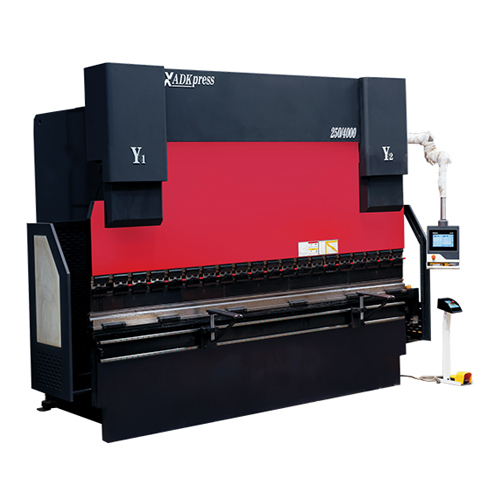

The controller manages both the Y1 and Y2 axes-Y1 controls the left cylinder, and Y2 controls the right cylinder-to ensure the ram moves synchronously.
The main oil pump operates under the drive of a servo main motor, resulting in energy consumption that is 60% lower than conventional systems.
This CNC press brake utilizes the latest high-frequency hydraulic control technology, offering faster, more efficient, and more stable performance.
The entire EU-designed frame features streamlined construction with heat-treated high-rigidity workbench, and offers an optional mechanical compensation device for precise bending. Hydraulic synchronization control, combined with the Estun E21/Estun E200P or Delem DA41s programmable logic controllers, ensures precise repeatability and user-friendly operation.
The integrated hydraulic system (Bosch Rexroth, Germany) enables quick and automatic switching to slow bending mode.
Both the X-axis and Y-axis are programmed via the controller and driven by servo motors to achieve accurate positioning.
Advanced variable frequency hydraulic control technology provides more stable and reliable performance.
The NC series press brake comes standard with a single-axis backgauge system (X-axis) and a single-axis bending angle system (Y-axis). Additionally, you can opt to add a V-axis compensation function and select suitable molds to easily bend complex-shaped workpieces.

STANDARD EQUIPMENT

Steel welded frame
Hydraulic system by Bosch Rexroth (Germany)
Standard dual-axis control (X, Y) with electrical components from Schneider (France)
Synchronized dual cylinders
X-axis servo motorized backgauge with ball screw and linear guide
Optional quick clamping system

MACHINE COMPONENTS

Controller
Backgauge
Torque Synchronous Control System

TECHNICAL PARAMETERS

Model	Nominal Pressure (kN)	Table Length (mm)	Distance Between Columns (mm)	Throat Depth (mm)	Stroke (mm)	Open Height (mm)	Dimension (LWH) (mm)
40T 1600	400	1600	1300	250	100	355	190012001900
63T 2500	630	2500	2050	250	120	370	250013502100
80T 2500	800	2500	2050	250	120	380	250014002150
110T 3200	1000	3200	2510	320	160	430	320015002300
110T 4000	1000	4000	3100	320	160	430	400017502590
125T 3200	1250	3200	2510	320	160	430	320016002350
125T 4000	1250	4000	3100	320	160	430	400016002450
160T 3200	1600	3200	2510	350	200	480	320016502800
160T 4000	1600	4000	3100	350	200	480	400016502800
200T 3200	2000	3200	2510	350	200	480	320016502800
200T 4000	2000	4000	3100	350	200	480	400016502800
250T 3200	2500	3200	2600	400	250	580	330021003150
250T 4000	2500	4000	3100	400	250	580	400021003150
300T 3200	3000	3200	2600	400	250	580	320022003200
300T 4000	3000	4000	3100	400	250	580	400022003200
400T 3200	4000	3200	2600	400	250	580	330024003200
400T 4000	4000	4000	3100	400	250	580	400024003200
500T 4000	5000	4000	3100	500	320	620	400026503320
500T 6000	5000	6000	4600	500	320	620	600027003320

The NC Press Brake Machine is designed to optimize industrial operations with its cutting-edge features. Built using high-quality stainless steel, this machine boasts exceptional rigidity, ensuring reliable performance under demanding conditions. Its automatic functionality reduces operational complexities, promoting seamless productivity and efficiency. With a voltage requirement of 230 volts, this energy-efficient machine helps minimize power consumption while maintaining superior output. Ideal for various industrial applications, the NC Press Brake Machine is engineered for durability, high precision, and long-lasting performance. Backed by a 1-year warranty, this electric-powered machine guarantees peace of mind and confidence in its reliability. Whether youre looking to streamline your processes or meet precise bending requirements, this innovative press brake ensures optimal results with minimal energy usage.
