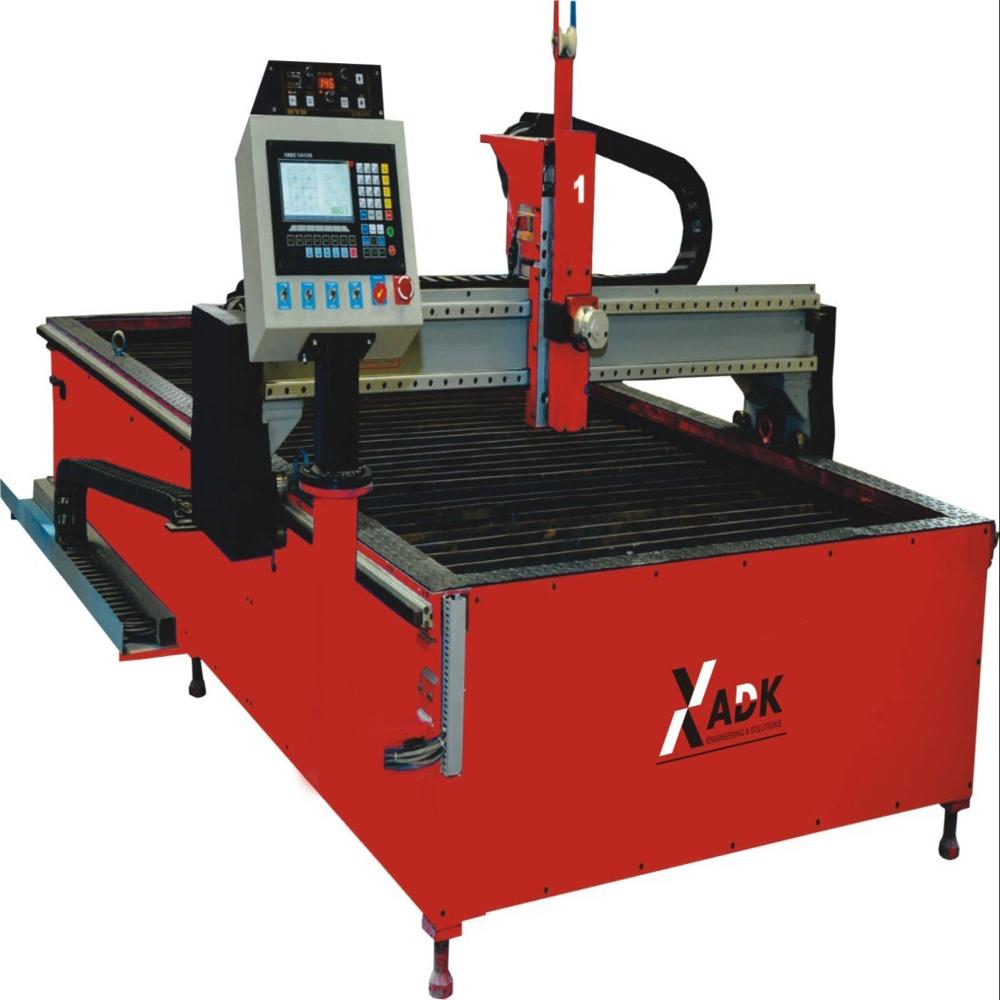

Table Type CNC Plasma Cutting Machine

Price 1400000.0 INR/ Unit

Get a Price/Quote

Table Type CNC Plasma Cutting Machine Specification

Type
Table Type CNC Plasma Cutting Machine

Material
Mild steel

Automatic Grade
Automatic

Control System
Frequency Speed Control

Cutting Function
Semi Automatic

Cooling System
Air Cooling

Drive Type
Electric

Warranty
5 Year

Table Type CNC Plasma Cutting Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
15 Units Per Month

Delivery Time
2 Months

Main Domestic Market
All India

About Table Type CNC Plasma Cutting Machine

MECHANICAL PARTS

Table-type gantry structure.
High-tension, high-precision, double-sided driven rack and pinion drive system.
Dual-shaft linear motion guideways and bearing arrangement (KHS-LG) enabling smooth transverse movement of the torch stations and longitudinal movement of the gantry.
Automatic wear compensation mechanism using high-tension cup springs ensures consistent, backlash-free engagement between the pinion and rack.

APPLICATION

Pre Engineering Building (Peb)
Heavy Fabrication
Chemical Plant Machinery Mfg
Tank Mfg
Tower Mfg
Job Work
Road Machinery Equipments Mfg
Food Processing Machinery Mfg
Metirial Handling Equipments
Hydraulic Machinery Mfg
Agriculture Machinery Mfg

TECHNICAL PARAMETERS

Track Width (mm)	2500, 3500, 4200 & Above
Track Length (mm)	4000, 6000, 8000 & Above
Effective Track Length (mm)	2500, 4500, 6500 & Above
Controller	FLSK 2300B (Weldarc)
X Axis Linear Motion Guide	Dual Guide Rod
Y Axis Linear Motion	24 KG/ Meter Self-hardened Rail
Power source	Hypertherm USAO-12000 mm/Min
Rapid Positioning Speed (mm /3 Mtr)	+/- 0.3
Longitudinal Guiding Accuracy (mm)	+/- 0.5
Repeatability Accuracy	AC 220 V (Single Phase) (+/-10%), 50 Hz, 2

The Table Type CNC Plasma Cutting Machine is designed to deliver precise and efficient cutting for industrial applications. It features a semi-automatic cutting function combined with frequency speed control for optimal operation across diverse tasks. Powered by an electric drive system and equipped with an automatic grade mechanism, this machine ensures smooth and reliable performance. Built with robust mild steel material, it guarantees durability even in demanding working environments. The air cooling system enhances its operational stability by preventing overheating during extended usage. This cutting machine comes with a 5-year warranty, ensuring peace of mind and long-term productivity. Ideal for manufacturing and supply operations, it blends cutting-edge technology with practical utility to improve productivity and reduce downtime.

Cutting Thickness	12 mm
Automation Grade	Fully-automatic
Voltage	415V
Material	Mild Steel
Phase	3 Phase
Machine power	2 kVA
Cutting material	Mild steel
Plasma torch height sensor	ARC Voltage based
Brand	ADK
Country of Origin	Made in India
